Gaodian Technology Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm hluav taws xob ntes hluav taws xob nyob rau hauv Suav teb. Nrog kev paub ntau, peb zoo siab tos txais koj mus yuav cov khoom siv hluav taws xob siab tshaj plaws hauv Suav teb ntawm no los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.

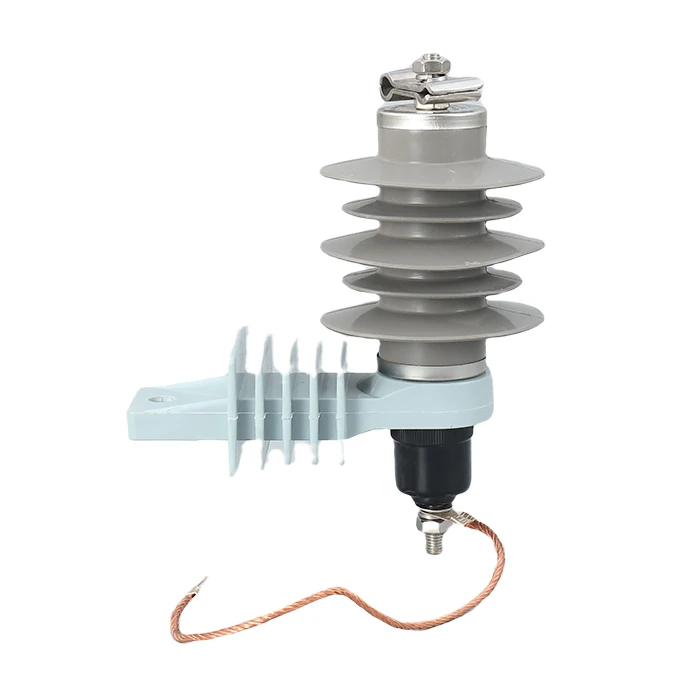

Polymer-housed gapless hlau oxide surge arresters tiv thaiv transformers, switchgear, tis kab, capacitor bank thiab lwm yam khoom siv hluav taws xob los ntawm kev puas tsuaj los ntawm xob laim thiab hloov thiab txhim kho kev ruaj ntseg thiab kev ruaj ntseg ntawm lub hwj chim system.
Technical Specification
Cov qauv siv tau:GB/T 11032-2020, IEC 60099-4:2014, IEEE C62.11
Rated voltage:10 kV
Tshem tawm tam sim no:10kA (Customizable)
Xim:lub teeb grey / Cib Liab
Khoom siv:Zinc oxide varistor, HTV silicone roj hmab, aluminium alloy, stainless hlau
|
TSIS MUAJ. |
Qauv |
Creepage nrug (mm) |
Tawm tam sim no (kA) |
Qhov siab tshaj qhov hluav taws xob nrog 8/20 [μs], 10 kA |
Fais fab zaus ntub dej tiv taus voltage (kV) |
xob laim impulse withstand voltage (kV) |
|
1 |
HY10W-27 |
330 |
10 |
Tsawg dua los yog sib npaug 33 |
24 |
75 |
Cov xwm txheej ntawm kev siv
|
Yam khoom |
Guaranteed tus nqi |
|
Qhov siab |
Tsawg dua los yog sib npaug li 3000 m |
|
Ambient Kub |
-40℃- +40 degree |
|
txheeb ze humidity |
Lub hli nruab nrab Tsawg dua lossis sib npaug li 90%; Qhov nruab nrab txhua hnub Tsawg dua lossis sib npaug li 95% |
|
Sun Radiation Intensity |
Tsawg dua lossis sib npaug li 0.1 W / cm² |
|
Cua Ceev / Cua Siab |
Tsawg dua lossis sib npaug li 35 m / s |
|
Ice Accretion Thickness |
Tsawg dua los yog sib npaug li 10 mm |
|
Cov pa phem |
Chav kawm a - e |
Ntsiab nta & qhov zoo
Silicone roj hmab vaj tsev nrog tiv thaiv - pa phem thiab hydrophobic zog
Lub teeb yuag, yooj yim thauj, nruab thiab tswj
Explosion-cov qauv pov thawj, tsis muaj qhov tawg thaum muaj kev txhaum sab hauv
Lub neej ua haujlwm ntev
Haum rau hnyav hnyav, ntug hiav txwv dej, thaj chaw siab humidity
Hluav taws xob xob ntes series
daim ntawv pov thawj
Ntim thiab xa khoom
Lub sij hawm xa tuaj: FOB, CIF, CFR
Txoj kev xa khoom: Los ntawm dej hiav txwv, huab cua lossis dej hiav txwv
Lub sij hawm xa tuaj: Negotiable, ib txwm 30 hnub
Ntim: cartons, pallet, customizable
Warranty: 2 xyoos
MOQ: 10 pcs
peb lub tuam txhab
Founded hauv lub Tsib Hlis 2010, peb yog ib lub tuam txhab ua lag luam siab tshaj - thev naus laus zis tshwj xeeb hauv kev tsim khoom, kev tsim kho, R&D, thiab xa tawm hluav taws xob xa tawm thiab xa tawm (T&D) cov khoom lag luam los ntawm 10kV txog 220kV.Tso- tawm Fuses,Composite Insulators,AC Surge Arresters thiab lawv cov khoom siv yog peb cov khoom lag luam.
Peb lub tuam txhab tau txais ISO9001, ISO14001, ISO45001 daim ntawv pov thawj, kev tswj xyuas hluav taws xob pov thawj thiab cov ntawv pov thawj los ntawm cov chaw soj ntsuam thoob ntiaj teb, thiab khiav peb tus kheej hauv - lub tsev kuaj mob. Peb lub peev xwm tsim tau txhua xyoo ncav cuag 1.1 lab teeb, thiab tag nrho cov khoom ua raws li IEC, ANSI thiab IEEE cov qauv.
Peb khav theeb pab pawg kws tshaj lij ntawm cov engineers laus thiab cov kws tshaj lij nrog kev paub dhau los hauv cov khoom tsim thiab kev ua kom zoo tshaj plaws.
Customized Solutions, OEM / ODM Kev Pabcuam:muaj
Los ntawm superior zoo thiab kev pab cuam, Peb cov khoom tau raug xa tawm mus rauAfrica, Europe, South America, thiab Asialwm.
