Project Case / Colombia Installation teeb meem

Kev soj ntsuam nrawm thiab kev teeb tsa kev taw qhia rau Composite Suspension Insulators





Cov neeg siv khoom siv hluav taws xob tau ntsib qhov kev npaj txhij txog qhov tsis ua haujlwm thaum lub sijhawm teeb tsa ntawm 36kV cov khoom siv hluav taws xob cuam tshuam. Cov chav nyob tau tawg thaum raug tensioned thaum kab stringing, ua rau muaj kev txhawj xeeb txog kev nyab xeeb thiab qhov project txuas ntxiv.

Cov neeg siv khoom tau thov kev txhawb nqa tam sim ntawd txhawm rau txheeb xyuas qhov ua rau thiab tiv thaiv cov xwm txheej zoo sib xws hauv kev teeb tsa ntxiv.



• Insulators tau tawg thaum lub sijhawm teeb tsa.
• Txoj hauj lwm breakage thiab fiberglass pas nrig puas yog inconsistent nrog tus qauv nro los yog compression tsis ua hauj lwm.
• Cov txheej txheem kev teeb tsa uas twb muaj lawm muaj kev pheej hmoo khoov kev ntxhov siab uas dhau ntawm cov insulator cov kev txwv hauv zos.
• Yuav tsum muaj kev taw qhia tam sim los tiv thaiv kev puas tsuaj rau cov chav ntxiv ntawm -site.



Peb pab neeg ua haujlwm engineering tau tshawb xyuas tag nrho suav nrog:

1.Txoj kev tsom xam:

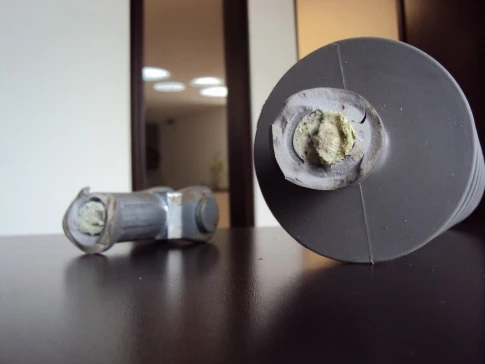

• Muab piv cov pob txha tawg thiab cov duab installation.

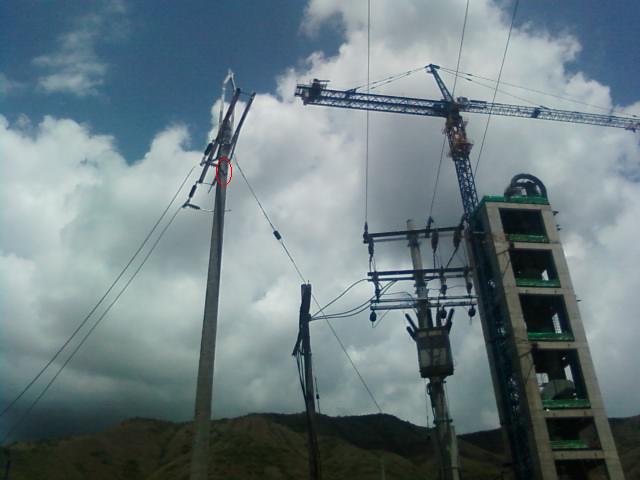

• Pom tau tias khoov kev ntxhov siab los ntawm qhov tsis raug rub lub kaum sab xis ntawm cov hlau qis qis ua rau cov tub ntxhais fiberglass ua tsis tiav.

2. Mechanical Testing:

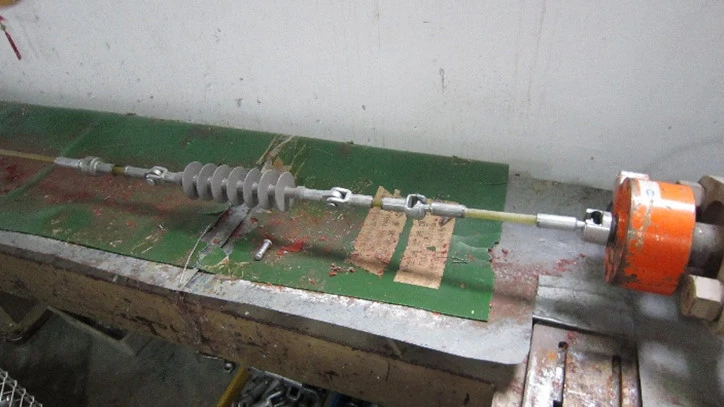

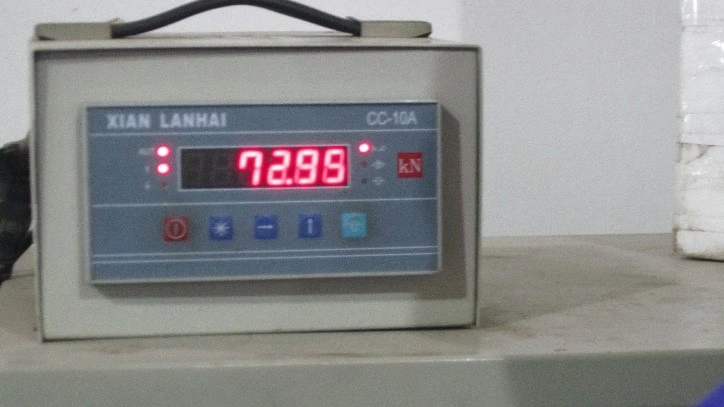

• Tensile load tests paub tseeb tias cov units tuaj yeem tiv taus 70kN raws li kev qhia tshwj xeeb.

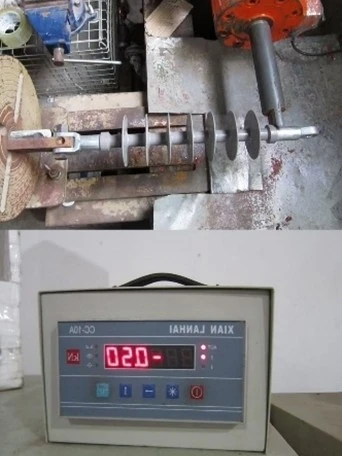

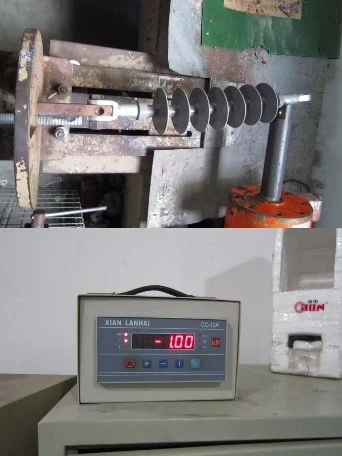

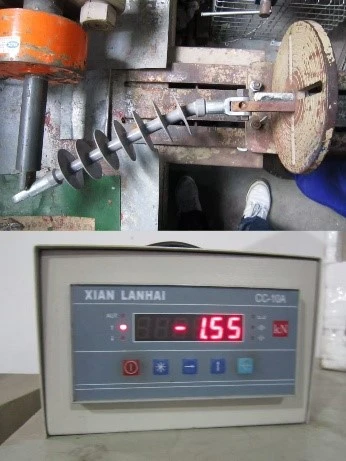

• Kev tswj kev khoov kev ntsuas tau qhia tias tsis ua haujlwm tau tshwm sim ntawm ~ 1.55kN, qhia txog kev teeb tsa- vim yog qhov cuam tshuam loj heev.

3.Installation Guide:

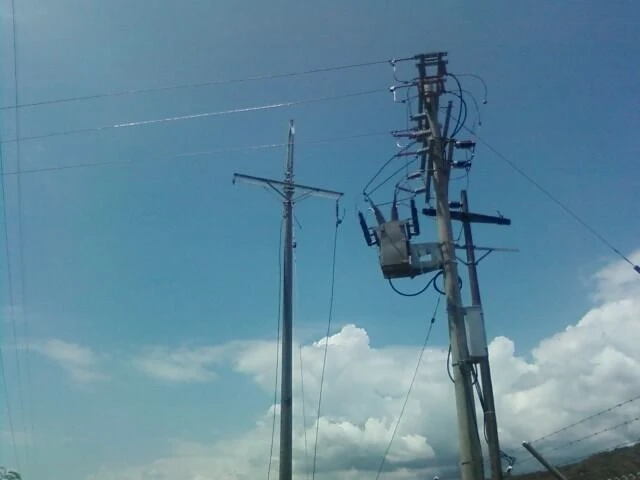

• Pom zoo kho cov kaum sab xis rub tawm thiab tuav cov txheej txheem kom tsis txhob muaj kev sib cuag ncaj qha nrog tus ntoo khaub lig- caj npab.
• Muab kev taw qhia qhov muag kom txo qis kev sib tsoo thiab tiv thaiv kev puas tsuaj rau lub tsev silicone.





4.Cov ntaub ntawv & Kev them nyiaj yug:

• Muab cov ncauj lus kom ntxaws txheeb xyuas thiab cov kauj ruam -los ntawm - cov lus qhia kho cov kauj ruam rau ntawm - pab pawg chaw.
• Xyuas kom cov chav nyob seem tau teeb tsa zoo yam tsis muaj xwm txheej ntxiv.





• Tsis muaj cov insulators ntxiv raug puas tsuaj tom qab siv txoj kev pom zoo installation.
• Txo kev pheej hmoo ntawm kev teeb tsa thiab txhim kho kev nyab xeeb tag nrho ntawm -site.
• Muab cov neeg siv khoom nrog kev pom zoo, ua kom pom qhov kev ntseeg tau ntawm peb cov insulators sib xyaw ua ke raws li kev tswj xyuas kom raug.
• Ua kom muaj kev ntseeg siab ntawm cov neeg siv khoom hauv peb cov kev txhawb nqa engineering thiab tom qab - muag muag.





• Kev them nyiaj yug Engineering:Ntawm - qhov kev soj ntsuam tsis ua haujlwm thiab kev taw qhia tiv thaiv qhov project qeeb.
• Kev ntseeg tau ntawm cov khoom siv:Cov chav ua haujlwm hauv cov lus qhia tshwj xeeb thaum ua raws li cov txheej txheem kev teeb tsa.
• Kev sib koom tes ntawm cov neeg siv khoom:Cov lus teb ceev ceev thiab cov lus qhia meej txo qis kev pheej hmoo thiab tiv thaiv kev tsim kho vaj tse.
• Kev Paub Txog Kev Tiv Thaiv:Cov lus pom zoo rau kev txhim kho txo ​​qhov muaj peev xwm rau kev puas tsuaj thiab txuas ntxiv lub neej kev pab cuam.
