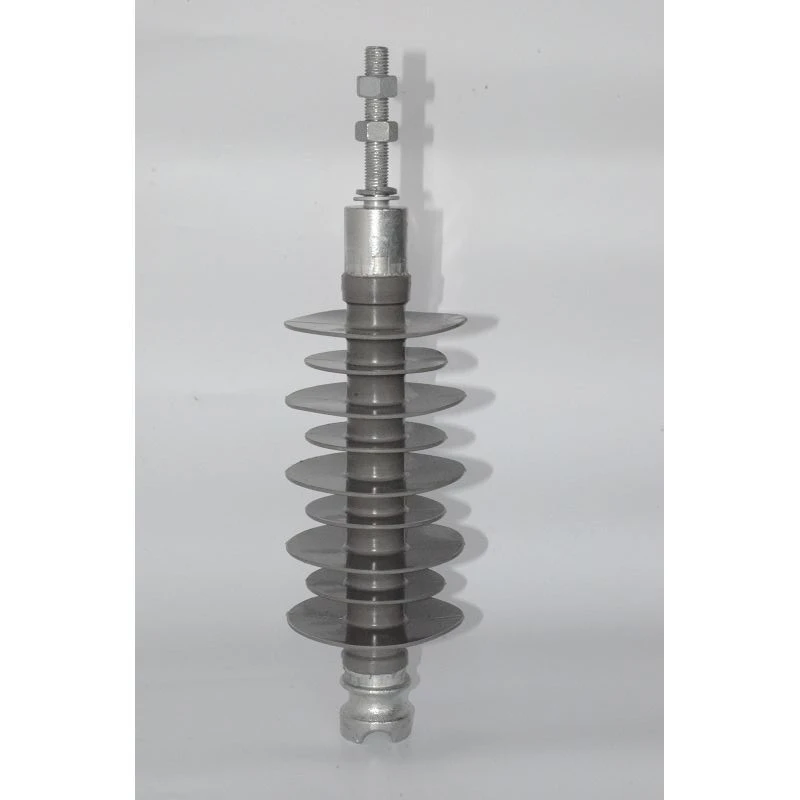

Polymer Pin Insulator

Name: Polymer Pin Insulator - Tuam Tshoj Polymer Pin Insulator Chaw tsim tshuaj paus Chaw tsim tshuaj paus - Gaodian Tech.
Brand: Gaodian
SKU: 304860272

Siab -Kev Ua Haujlwm Zoo Polymer Pin Insulator los ntawm 11kV txog 33kV, feem ntau xa tawm mus rau African thiab European lag luam.

Xa kev nug

Hauj lwm lawm

Kev tsis

Gaodian Technology Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm polymer pin insulator nyob rau hauv Suav teb. Nrog kev paub dhau los, peb zoo siab tos txais koj los yuav cov khoom siv hluav taws xob zoo tshaj plaws hauv Suav teb ntawm no los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.

PebPolymer Pin Insulators(Composite Pin Insulators) yog tsim los rau qhov xav tau ib puag ncig ntawm cov khoom siv hluav taws xob niaj hnub. Tsim los hloov cov porcelain insulators, peb cov khoom muaj lub teeb yuag, unbreakable, thiab txhim khu kev qha lwm txoj rau voltages xws li11kV rau 36kV. Polymeric insulator yog tsim los ntawm epoxy resin fiberglass tub ntxhais qws, silicon roj hmab vaj tse thiab galvanized hlau fittings. Nws muaj qhov zoo ntawm kev khoov siab load, tiv thaiv -kev ua qias tuaj, tsim kev pab lub neej ntev txog 40 xyoo thiab kev thauj mus los yooj yim.

Technical Specification

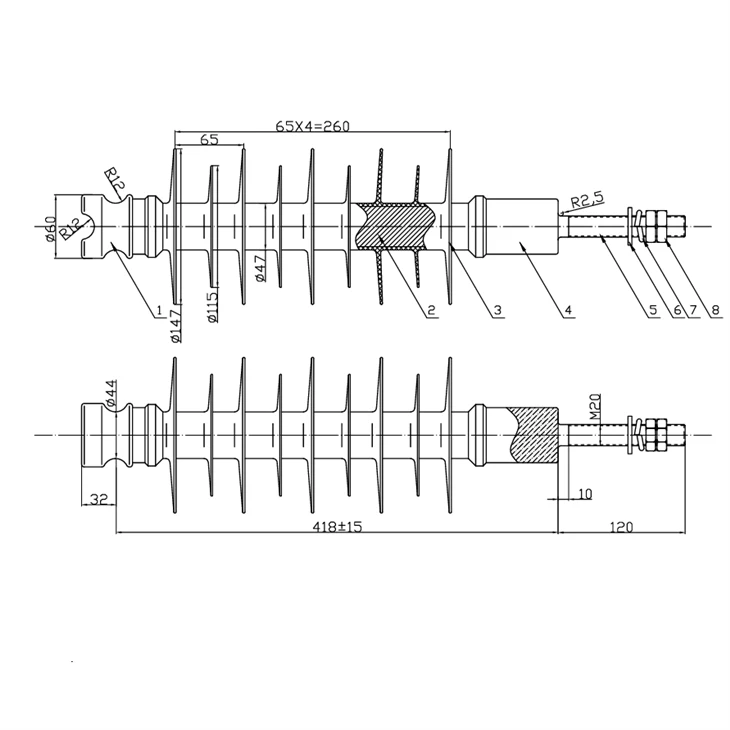

technical data-polymer pin insulator

TSIS MUAJ.	Qauv	HEIGHT (mm)	Creepage nrug (mm)	Qhuav arc nrug (mm)	SML (kN)	Fais fab zaus ntub dej tiv taus voltage (kV)	xob laim impulse withstand voltage (kV)
1	FP-36/6-1000	418	1000	370	6	90	200

Khoom nthuav dav

Cov qauv siv tau:IEC 61109, ANSI C29.18

Rated voltage:10-36 kV

Cantilever zog:6kN, 10kN, 12.5kN (Customizable)

Xim:Ntuj Grey / Cib Liab

Core Khoom:ECR{0}}Fiberglass pas nrig

End Fittings:Kub-dip galvanized steel lossis aluminium alloy

Tej yam kev mob ntawm kev siv

Yam khoom	Guaranteed tus nqi
Qhov siab	Tsawg dua los yog sib npaug li 4000 m
Ambient Kub	-40℃- +40 degree
txheeb ze humidity	Lub hli nruab nrab Tsawg dua lossis sib npaug li 90%; Qhov nruab nrab txhua hnub Tsawg dua lossis sib npaug li 95%
Sun Radiation Intensity	Tsawg dua lossis sib npaug li 0.1 W / cm²
Cua Ceev / Cua Siab	Tsawg dua lossis sib npaug li 35 m / s
Ice Accretion Thickness	Tsawg dua los yog sib npaug li 10 mm
Cov pa phem	Chav kawm a - e

daim ntawv pov thawj

certificate-polymer pin insulator

Ntim thiab xa khoom

Lub sij hawm xa tuaj: FOB, CIF, CFR

Txoj kev xa khoom: Los ntawm dej hiav txwv, huab cua lossis dej hiav txwv

Lub sij hawm xa tuaj: Negotiable, ib txwm 30 hnub

Ntim: thawv, pallet, export txheem

Warranty: 2 xyoos

MOQ: 50 pcs

package of polymer pin insulator

Vim li cas thiaj xaiv peb?

Muaj kev paub--Peb lub tuam txhab muaj kev paub dhau los ntawm ntau tshaj 20 xyoo, tsom rau kev tsim hluav taws xob hluav taws xob hluav taws xob hluav taws xob thiab cov khoom siv hluav taws xob. Cov neeg ua haujlwm hauv peb lub Hoobkas kuj muaj kev txawj ntse vim kev cob qhia txhua xyoo.

Customized

Peb yog cov chaw tsim khoom, qauv & OEM & ODM muaj!

Kev nyab xeeb

Peb muaj cov cuab yeej kuaj hauv peb tus kheej lub chaw kuaj mob, txhua yam ntawm peb cov khoom tau raug kuaj hauv lub hoobkas ua ntej muag.

Daim ntawv pov thawj

Peb muaj cov ntaub ntawv xeem los ntawm lub teb chaws labs thiab ISO ntawv pov thawj.

Tus nqi sib tw

Peb muaj thaj av, peb tsim cov khoom siv, peb ua cov khoom tiav!
